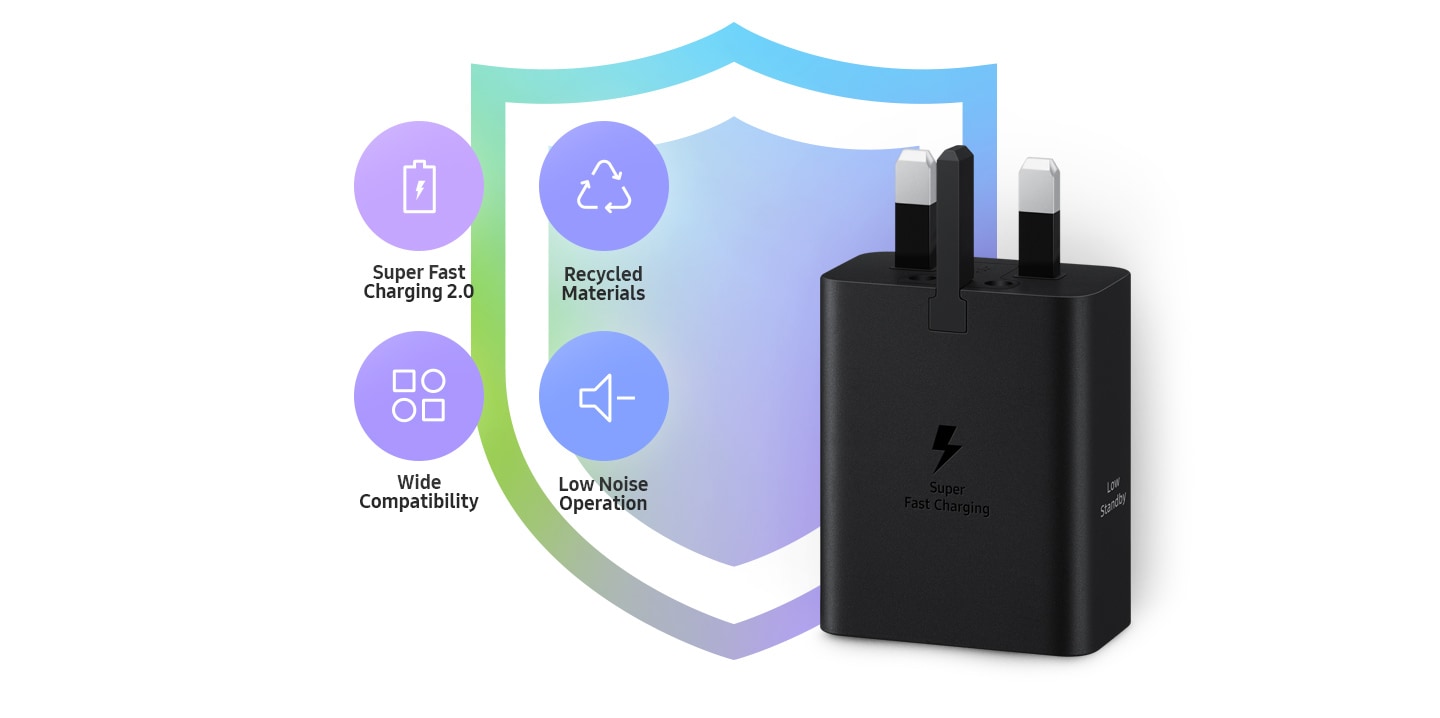

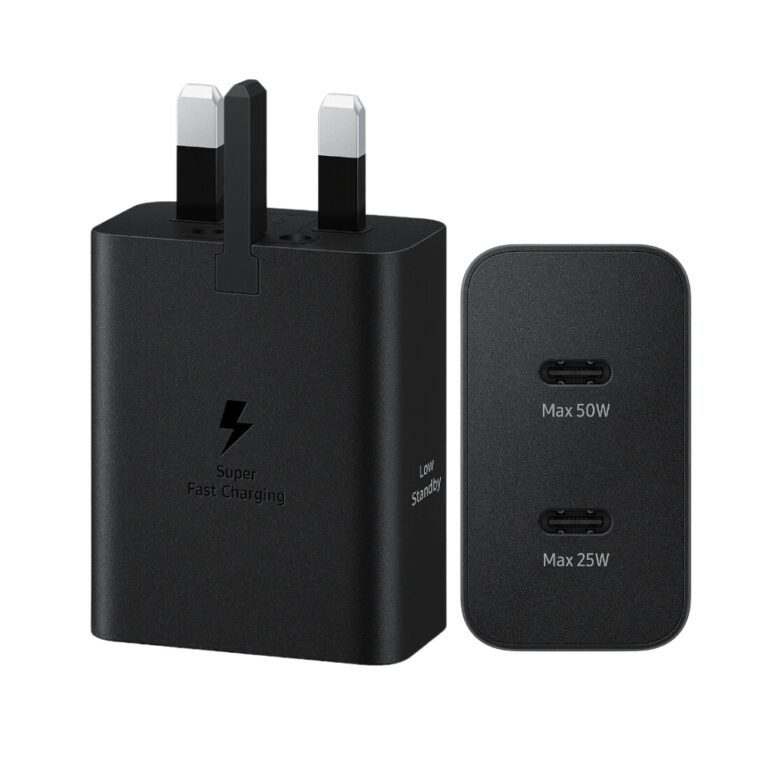

Samsung 50W 3pin PD Duo Power Adapter with 5A USB C Cable.Elevate your charging experience with the 50W Power Adapter Duo. Dual ports and super fast charging 2.0 provide high-efficiency charging capacity.

The Samsung 50W PD Power Adapter Duo is a multi-function and efficient charging device that can cater to the needs of today’s Samsung Galaxy devices and other USB-C enabled devices. It stands out from the crowd on the basis of its dual-port capability, optimized charge protocols, and aggressive safety profiles, providing a superior charging experience.

Key Features and Technical Specifications:

Dual USB-C Ports for Concurrent Charging:

The standout feature of this adapter is that it allows two devices to be charged at the same time through its two USB-C ports.

Port 1 (USB-C1): It is the default high-power port that can provide up to 50W max when used in isolation. It supports Samsung’s Super Fast Charging 2.0 (SFC 2.0).This is facilitated by USB Power Delivery (PD) 3.0 with Programmable Power Supply (PPS) protocol.

Port 2 (USB-C2): The second one gives 25W max when used separately. It provides regular Super Fast Charging (SFC). . This also employs PD 3.0 with PPS.
When charging both ports at the same time, the power output is typically divided equally to 25W + 25W, summing up to the total 50W output. What this does is allow rapid charging of two devices simultaneously even if neither of them is taking the full 50W capacity of the primary port.
USB Power Delivery (PD) 3.0 with PPS:

This adapter conforms to the globally accepted USB Power Delivery (PD) 3.0 specification. This guarantees maximum compatibility not only for Samsung but also for other USB-C supported devices that are PD-compatible.

PPS (Programmable Power Supply) support is essential for optimal fast charging. Through PPS, the charger is able to dynamically adjust current and voltage in real time based on the charging status and battery level of the device being charged. This will enhance speedier charging, less heat buildup, and possibly longer battery life.
PDO (Power Data Objects) is also supported, providing fixed voltage and current profiles to achieve high-speed charging.

High Compatibility

Though it is Samsung Super Fast Charging optimized, its support for PD 3.0 enables it to work with a ridiculously wide range of USB-C devices like:

Samsung Galaxy phones (S series, Note series, Z series, A series, M series).
Samsung Galaxy tablets (Tab S series, Tab A series, for example, Tab S10 FE).

Other USB-C devices such as laptops (though 50W will be slower for some power-guzzling models), smartwatches, earbuds, and even other non-Samsung smartphones (e.g., Google Pixel, iPhones with a USB-C to Lightning cable, OnePlus).
5A USB-C to USB-C Cable

For the highest speeds, particularly Super Fast Charging 2.0, a high-quality cable is required. An adapter typically comes with a 5A (5-ampere) USB-C to USB-C cable that can support the higher power passing needed to provide 45W or 50W charging. The charging may degrade when charging using a lower-rated cable.
Safety and Efficiency:

Low Standby Power Consumption: The charger is optimized to consume very little power (usually less than 5mW) when not charging an actual device, to reduce wastage of energy.

Integrated Safety Features: Samsung integrates multiple safety guards to shield the charger and plugged-in devices from damage.

These safety features protect against:
Overcurrent: Avoiding damage caused by excessive electrical current.
Overheating: Regulating heat to avoid heat-related damage.
Short Circuits: Avoiding damage caused by uncontrolled paths of electricity.
Heavy-Duty Construction: The adapter is typically small and sturdy in build, sometimes with a matte finish to improve grip and resist fingerprints.

Width x Height x Depth: Approximately 49.5 x 90.8 x 28.0 mm
Weight: Approximately 127 – 133 grams
Input Power: 100-240V (universal, international travel)
Cable Length: Typically 1.8 meters (5.9 feet)

In summary, the Samsung 50W PD Power Adapter Duo is a solid, feature-packed charger that provides high-speed, secure, and versatile charging features. The charger has two ports and supports both Super Fast Charging and Super Fast Charging 2.0 and would be the best option for buyers who own multiple Samsung Galaxy devices, including power-consuming tablets like the Galaxy Tab S10 FE, and other USB-C devices.
